Description
📦 General
- Dimension: 7.6″ x 5.5″ x 2.9″ (19.2 x 14.0 x 7.4 cm)
- Weight: 2.8 lbs (1.3 kg)
- Water rating: IPX7
- Touchscreen: Yes
- Display Type: WSVGA display
- Display Size: 6.1″ x 3.5″; 7.0″ diagonal (15.4 x 9.1 cm; 17.8 cm diag)
- Display Resolution: 1024 x 600 pixels
- Mounting Options: Bail, flush or flat
- Input: Touchscreen
- Polarised Lens Viewability: Yes
🧭 Maps & Memory
- Accepts Data Cards: 2 microSD™ cards (rear)
- Waypoints: 5,000
- Track Points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
📡 Sensors
- GPS / GLONASS / Galileo: Yes
- Built-in Receiver: 10 Hz high-sensitivity
- NMEA 2000® Compatible: Yes
- NMEA 0183 Compatible: Yes
- Supports WAAS: Yes
🗺️ Built-in & Optional Maps
- Tide Tables: Yes
- Garmin Navionics+™
- Garmin Navionics Vision+™
- Standard Mapping
- Garmin Quickdraw Contours
⛵ Chartplotter Features
- Garmin SmartMode (customisable presets)
- AIS / DSC
- Supports Fusion-Link™ radios
- GSD & GCV Black Box Sonar Support
- ActiveCaptain Mobile Compatible
- GRID Remote Input Compatible
- Wireless Remote Compatible
- Sailing Features
- Spoken Audio Alerts
- OneHelm Support
⚡ Electrical
- Power Input: 10 to 32 Vdc
- Typical Draw (12 Vdc): 1.18 A
- Max Draw (12 Vdc): 2.96 A
- Max Power Usage (10 Vdc): 35.9 W

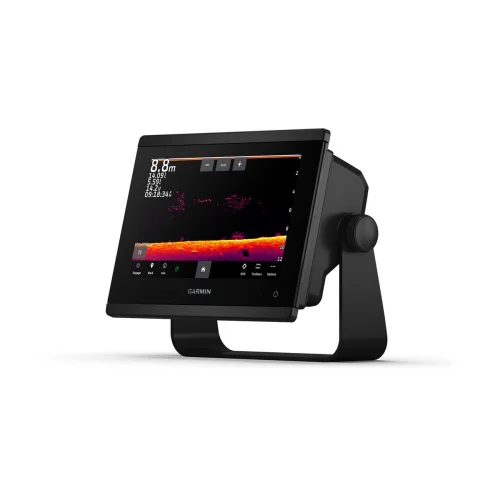

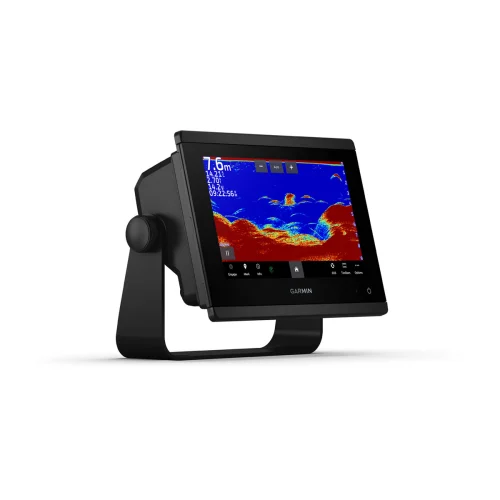

🔊 Sonar Features
- Displays Sonar: Yes
- Power Output: 1 kW
- Traditional Sonar: Built-in CHIRP (70/83/200 kHz, L/M/H)
- ClearVü: Built-in 260/455/800/1000/1200 kHz

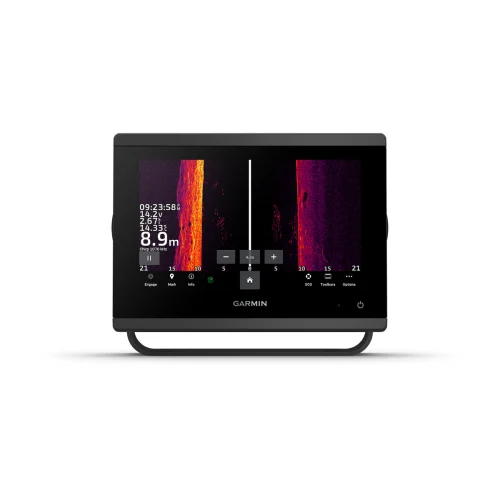

- SideVü: Built-in 260/455/800/1000/1200 kHz
- Panoptix™: Yes
- LiveScope: Yes

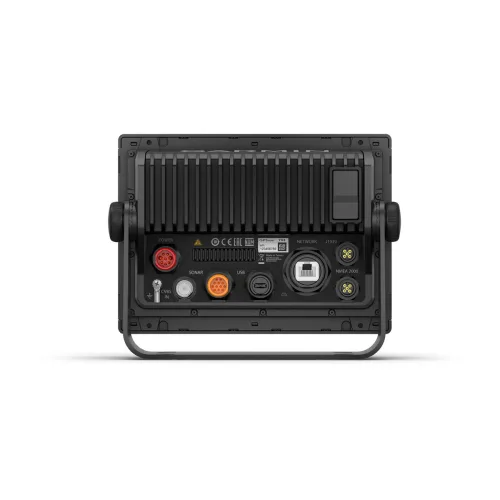

🔌 Connections
- NMEA 2000® Ports: 1
- NMEA 0183 Input: 1 (Differential)
- NMEA 0183 Output: 1
- Video Input: 1 BNC
- J1939 Ports: 1
- Garmin Marine Network Ports: 1
- 12-pin Transducer Ports: 1
- USB Ports: Yes
- Bluetooth® Calling: Yes
- ANT® Connectivity: Yes
- Garmin Wi-Fi Network: Yes
