Description
General
Dimension: 38.4 x 26.2 x 7.6 cm (15.1″ x 10.3″ x 3.0″)
Weight: 4.4 kg
Water rating: IPX7
Touchscreen: ✔️
Input: Touchscreen
Display
Type: FHD, IPS
Size: 34.5 cm x 19.5 cm; 39.7 cm diagonal (13.6″ x 7.7″; 15.6″ diag)
Resolution: 1920 x 1080 pixels

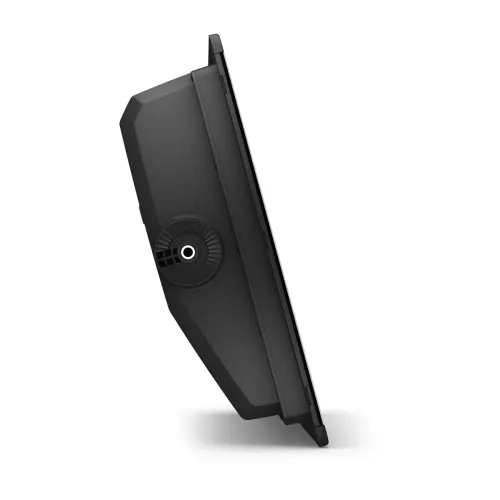

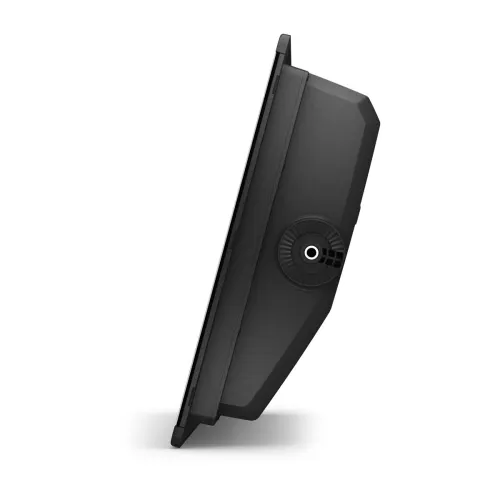

Mounting Options: Bail, flush or flat (No hardware included for flat/bail install)
Maps & Memory
Data Cards: 2 microSD (rear)
Waypoints: 5,000
Track Points: 50,000
Tracks: 50
Routes: 100
Sensors
GPS / GLONASS / Galileo: ✔️
Built-in Receiver: 10 Hz
NMEA 2000® Compatible: ✔️
NMEA 0183 Compatible: ✔️
WAAS Supported: ✔️

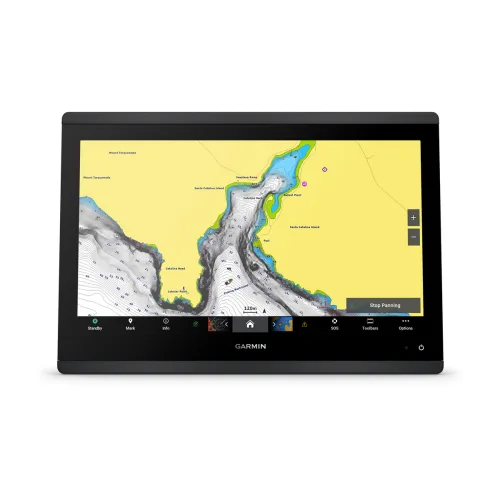

Maps
Tide Tables: ✔️
Garmin Navionics+™: ✔️
Garmin Navionics Vision+™: ✔️
Standard Mapping: ✔️
Quickdraw Contours: ✔️
Chartplotter Features
SmartMode, AIS, DSC: ✔️
Fusion-Link Radios: ✔️
GSD/GCV Black Box Sonar: ✔️
ActiveCaptain & GRID Compatible: ✔️
Wireless Remote & OneHelm Support: ✔️
Spoken Alerts: ✔️
Electrical
Power Input: 10–32 Vdc
Typical Draw (12 Vdc): 2.90 A
Max Draw (12 Vdc): 3.73 A
Max Power (10 Vdc): 46.0 W
Sonar
Displays Sonar: ✔️
Power Output: 1 kW

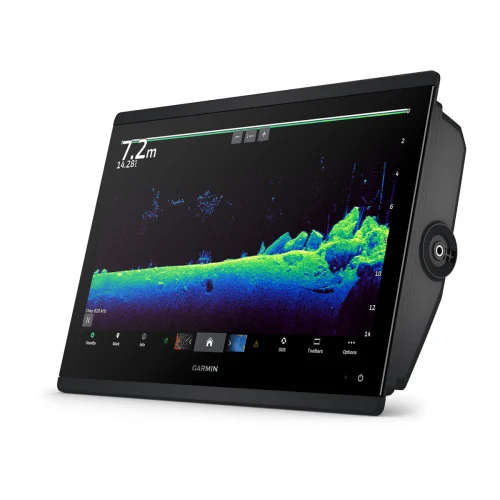

Traditional CHIRP: Built-in (50/70/83/200 kHz, L/M/H)

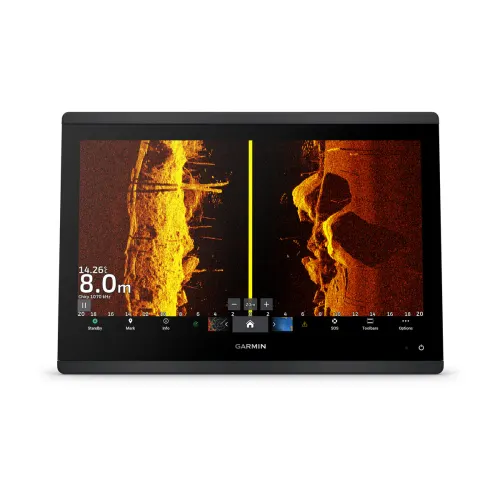

ClearVü & SideVü: Built-in (260–1200 kHz)

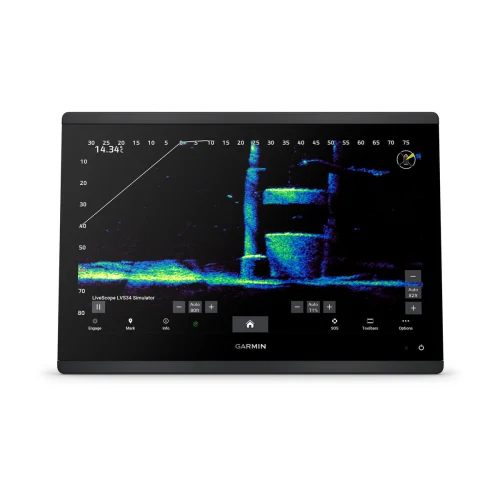

Panoptix / LiveScope: Compatible

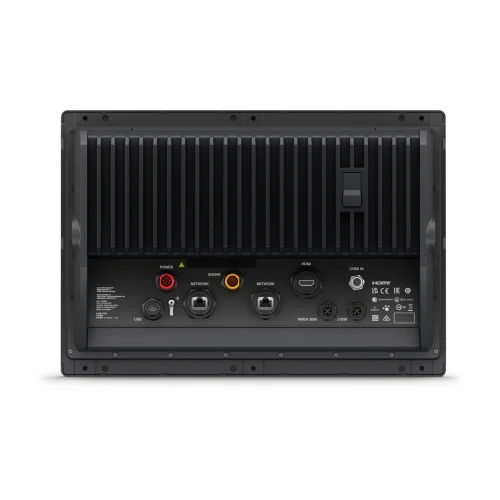

Connections
NMEA 2000® Ports: 1
NMEA 0183 In/Out: 1 each
Video In: 1 BNC
Video Out: 1 HDMI
J1939: 1
Marine Network: 2
12-pin Transducer: 1
USB, Bluetooth Calling, ANT+: —
Wi-Fi (Local): ✔️
