Description
📦 General
- Dimension: 38.4 x 26.2 x 7.6 cm (15.1″ x 10.3″ x 3.0″)
- Weight: 4.4 kg
- Water rating: IPX7
- Touchscreen: Yes
- Display Type: FHD, IPS
- Display Size: 34.5 x 19.5 cm; 39.7 cm diagonal (13.6″ x 7.7″; 15.6″ diagonal)
- Display Resolution: 1920 x 1080 pixels

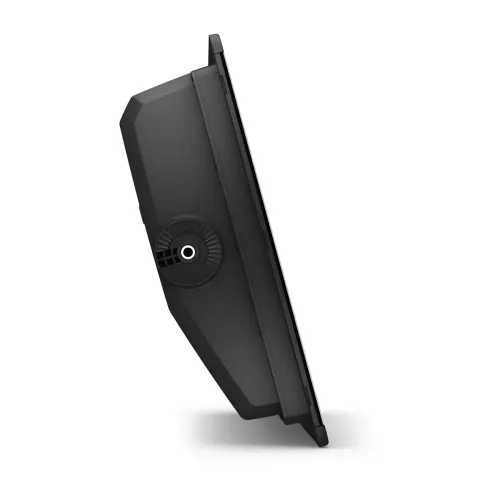

- Mounting Options: Bail, flush or flat (no hardware included for flat/bail mount)
- Input: Touchscreen
🧭 Maps & Memory
- Accepts Data Cards: 2 microSD™ cards (back of device)
- Waypoints: 5,000
- Track Points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
📡 Sensors
- GPS / GLONASS / Galileo: Yes
- Built-in Receiver: 10 Hz
- NMEA 2000® Compatible: Yes
- NMEA 0183 Compatible: Yes
- Supports WAAS: Yes
🗺️ Optional Map Support
- Garmin Navionics+™
- Garmin Navionics Vision+™
- Standard Mapping
- Garmin Quickdraw Contours
⚡ Electrical
- Power Input: 10 to 32 Vdc
- Typical Draw (12 Vdc): 2.90 A
- Max Draw (12 Vdc): 3.73 A
- Max Power Usage (10 Vdc): 46.0 W
⛵ Chartplotter Features
- Garmin SmartMode (customisable monitor presets)
- AIS / DSC
- Fusion-Link™ Compatible
- GSD / GCV Black Box Support
- ActiveCaptain Mobile Planning
- GRID Remote Input Compatible
- Wireless Remote Compatible

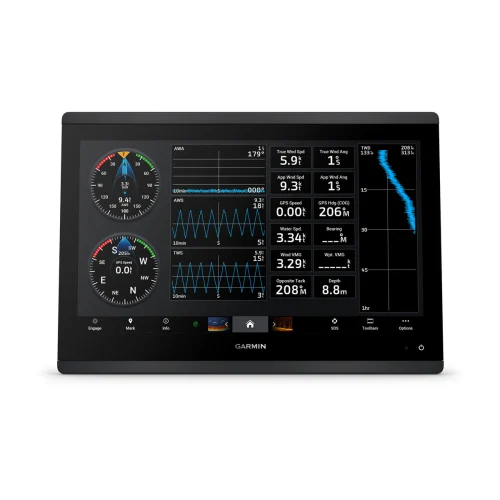

- Sailing Features
- Spoken Audio Alerts
- OneHelm Support
🔊 Sonar Features
- Displays Sonar: Yes
- Traditional Sonar: With GCV™ black box (sold separately)
- ClearVü: With GCV™ black box (sold separately)
- SideVü: With GCV™ black box (sold separately)
- Panoptix™ & LiveScope: Supported

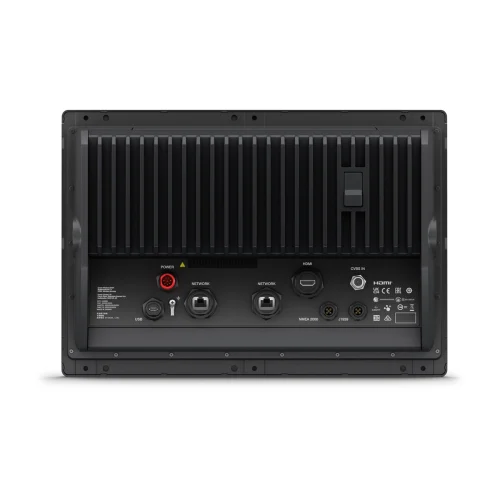

🔌 Connections
- NMEA 2000® Ports: 1
- NMEA 0183 Input: 1
- NMEA 0183 Output: 1
- Video Input: 1 BNC Composite
- Video Output: 1 HDMI
- J1939 Port: 1
- Garmin Marine Network Ports: 2
- USB Ports: Yes
- Bluetooth® Calling: Yes
- ANT® (Connectivity): Yes
- Garmin Wi-Fi: Yes
