Description
📦 General
- Dimension: 8.1″ x 5.2″ x 2.6″ (20.6 x 13.1 x 6.7 cm)
- Weight: 1.8 lbs (0.8 kg)
- Water rating: IPX7
- Touchscreen: Yes
- Display Type: WVGA, TN
- Display Size: 5.4″ x 3.1″, 6.2″ (13.8 x 7.8 cm, 15.7 cm)
- Display Resolution: 800 x 480 pixels

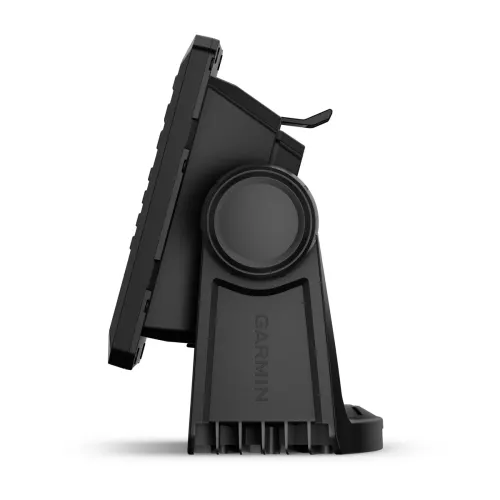

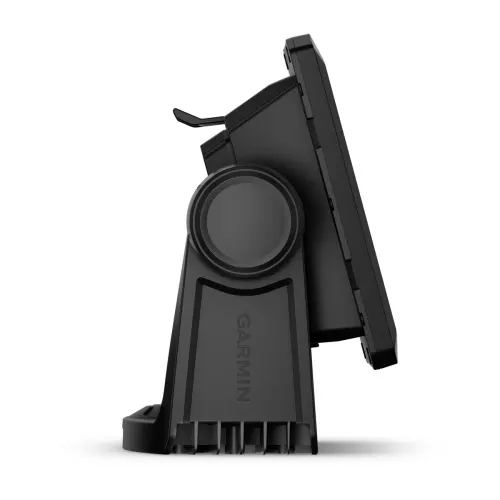

- Mounting Options: Bail or flush
- Input: Touchscreen with Keyed Assist
🧭 Maps & Memory
- Accepts Data Cards: 1 microSD™ card; 32 GB max
- Waypoints: 5,000
- Track Points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
📡 Sensors
- GPS: Yes
- GLONASS: Yes
- Galileo: Yes
- BeiDou: Yes
- Built-in Receiver: Yes (10 Hz)
- NMEA 2000® Compatible: Yes
- Supports WAAS: Yes
- Multi-band, Multi-Constellation GPS: Yes
🗺️ Built-in Maps
- Auto Guidance+: Yes (via ActiveCaptain app)
- Garmin Navionics+ Inland & Coastal: Yes (see Additional)
🗺️ Optional Map Support
- BlueChart g3
- BlueChart g3 Vision
- LakeVü g3 & LakeVü g3 Ultra
- Garmin Navionics+™ & Navionics Vision+™
- TOPO 100K
- Standard Mapping
- Garmin Quickdraw Contours
⛵ Chartplotter Features
- AIS
- DSC
- Supports Fusion-Link™ compatible radios
- ActiveCaptain Mobile Planning Compatible
- Sailing Features
⚡ Electrical
- Power Input: 9 to 18 Vdc
- Typical Current Draw (12 Vdc): 1.53 A
- Max Current Draw (12 Vdc): 3.2 A
- Max Power Usage (10 Vdc): 18.4 W
🔊 Sonar Features
- Displays Sonar: Yes
- Power Output: 500 W
- Traditional Sonar: Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
- ClearVü: Built-in (260/455/800/1000/1200 kHz)
- SideVü: Built-in (260/455/800/1000/1200 kHz)
- Panoptix™ Sonar: Yes
- LiveScope: Yes

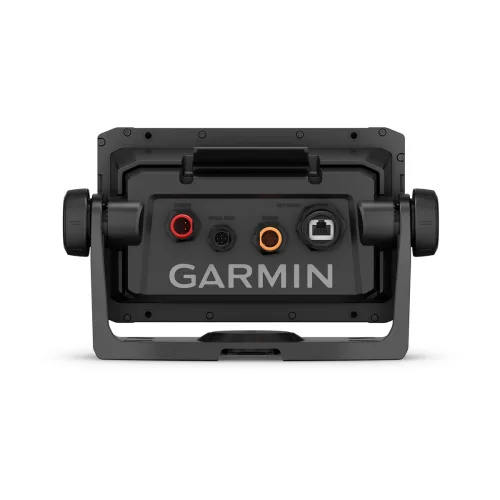

🔌 Connections
- NMEA 2000® Ports
- Garmin Marine Network Ports: 1
- 12-pin Transducer Ports: 1
- Bluetooth® Calling
- ANT® Connectivity
- Garmin Wi-Fi Network: Yes (Local Connection)
